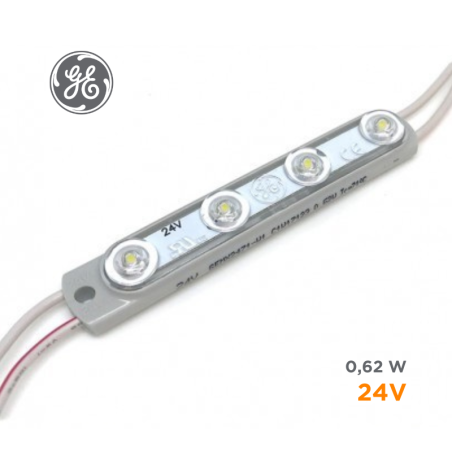

Tetra MAX LED Modules
€3.74
Tax included
Tetra® MAX—the 24V remarkable LED system designed for small channel letters
as shallow as 4 inches in depth delivers incredibly uniform light, installs easily and operates efficiently.
The Tetra® MAX is now IP66 and UL wet rated which makes it more robust and reliable even under wet weather.
1000 pieces
Description
Powerful all new OptiLensTM X
Tetra® MAX features all new OptiLensTM X a new patented technology that allows for an incredible 170° viewing angle. The all new Tetra® MAX is your best option to significantly reduce energy and maintenance costs.
Power Supply Loading
The new 24V Tetra® MAX loading improves 45% from the previous 12V generation. Now load up to 87 feet (26.5 m) or 130 modules of product per GEPS24-100U-NA power supply.
Improved stroke spacing/ New Flow Channels
The new 24V Tetra® MAX stroke spacing has improved on average by 35% (Depth/Stroke Spacing 4”/14”, 5”/17”, 6”/22”), requiring less product, thanks to the new OptiLensTM X wide beam angle. In addition, its new silicone flow channels have increased bonding strength by 10-20%.
Tetra MAX Features
• Wide 170° beam angle
• Improved luminous intensity
• Efficacy: 161 lm/W
• 24 Volt DC, Class 2 (UL), Class III (IEC)
• UL Wet Rated & IP66- no separate enclosure is required
• 10 years limited Warranty
Tetra® MAX—the 24V remarkable LED system designed for small channel letters
as shallow as 4 inches in depth delivers incredibly uniform light, installs easily and operates efficiently.
The Tetra® MAX is now IP66 and UL wet rated which makes it more robust and reliable even under wet weather.
Attachments
Product Details
GEMX2432-W1
Data sheet
- Full Packaging
- 30 modules. Price for single module.
- Input voltage
- 24
- Power
- 0,62
- Lumen [lm]
- 100
- Color CCT
- 3200, 4100, 5000, 7100

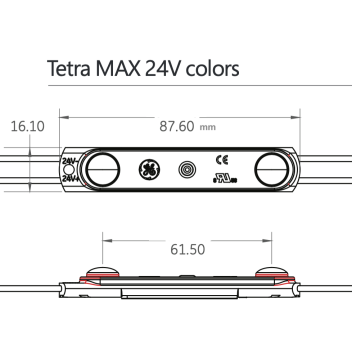

- Size
- 10.76 x 82.9 x 14.4
- IP
- 66
- Color
- Orange (0,7W) Red (0,46W) Blu (0,62W) Green (0,32W) Amber (589nm 0,38W)
- Pitch
- 20 cm
- Max led module in one line
- 130
- Warranty
- 10 years
- Energy Efficiency Class
- D (E 3200K)
