Z2U LED Modules

Name: Z2U LED Modules
Brand: Interone
SKU: 226
Price: 0.9 EUR
Availability: InStock

€0.90

Tax included

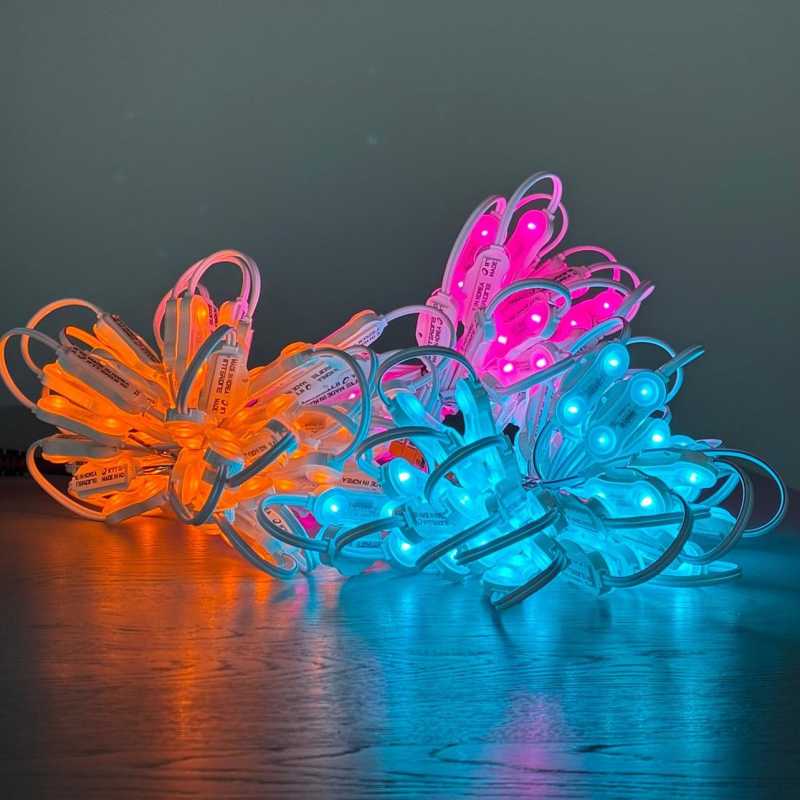

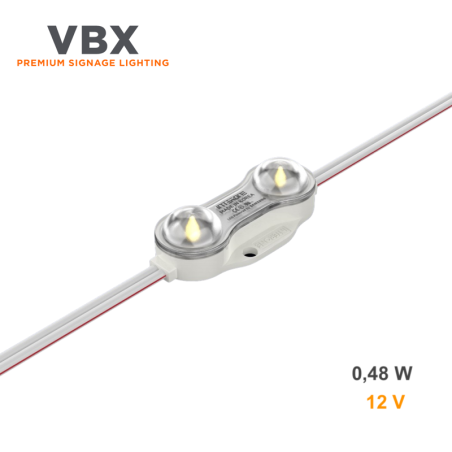

LED modules for signs with 12V power supply, equipped with Samsung chipset and reverse protection circuit. Thanks to the prismatic optics, they distribute the light evenly with a 160° beam. Available 3000K/4000K/6500K and in six different colours. Perfect for sign lighting or backlighting projects. IP68 degree of protection.

Manufacturer: Interone

In stock: 2700 pieces

Color

Quantity request:

Shipped within 1-2 days.

100% secure payments

Description

COLORE

ROSA: X=0,460 Y=0,210, ( 11Lumen )

AQUA: X=0,139 Y=0,178, Dominante 480nm, (17 Lumen)

AMBRA: X=0,571 Y=0,422, Dominante 590nm, ( 14Lumen )

ROSSO: X=0,693 Y=0,304, Dominante 622nm, ( 15Lumen )

VERDE: ( 30Lumen )

BLU: ( 9Lumen )

CARATTERISTICHE del modulo LED

• Chip LED SAMSUNG

• Circuito di protezione a tensione inversa• Angolo a fascio largo 160 °

• Tipo di lente incorporato

• Lunga durata (più di 50.000 ore a L70)

• Facilità di installazione e manutenzione

• Impermeabile al 100% (IP68)

• Funzionamento di sicurezza con DC12V

• 5 anni di garanzia

• Bianco 3000K 4000K , rosso, verde, blu, giallo, verde acqua, tiffany,

APPLICAZIONI

• Insegne e lettere scatolate (profondità da 40 a 150mm)

• Decorazioni e illuminazione per interni ed esterni

CERTIFICAZIONI

• UL (E349550), CE, RoHS

Attachments

VBX Z2U led module EN-IT

Product Details

Reference: Z2U BLUE

Data sheet

Full Packaging: 200 modules. Price for single module.
Input voltage: 12
Power: 0,48
Lumen [lm]: 46 lm/mod (6500K)
Color CCT: 3000K/4000K/6500K/red/green/blue/amber/ping/aqua
Nominal beam angle [°]: 160
Size: 43x15x8 mm
IP: 68
Standard: CE / RoHS / KS / SASO / BIS
Pitch: 108
Energy Efficiency Class: G (White)
