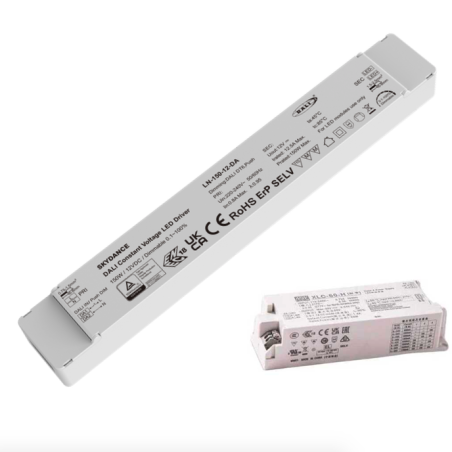

The XLC-60 series is a 60 W LED driver designed to operate either in constant-power mode or with a constant output voltage (12, 24, or 48 V). It supports an input range of 110–305 V AC and allows output current selection between 900 mA and 1700 mA via DIP switch or NFC programming. With an efficiency of up to 90%, the device can operate reliably with a housing temperature from –25 °C to +90 °C under natural convection. The XLC-60 series is developed according to the latest safety standards and includes 3-in-1 dimming and DALI-2 support. Dimming can also be easily controlled via PUSH function using a simple button, ensuring high flexibility in LED lighting system design.

Features

• Suitable for DC operation

• Flicker-free performance

• Compatible with emergency lighting systems

Operating conditions

• Operating temperature: –25 °C to +90 °C

Input

• Mains frequency: 47–63 Hz

• AC input voltage: 100–305 V

• DC input voltage: 155–431 V

• Input current: 0.35 A

• Efficiency: 87%

• Input connection type: Push-in terminal

Output

• Number of outputs: 1

• Output power: 60 W

• Output current: 2.5 A

• Built-in protection: overload, short-circuit, overvoltage and over-temperature

• Output connection type: Push-in terminal

Safety

• Protection class: II

• Dimensions (L × W × H): 136 × 45 × 32 mm

• Weight: 390 g

Note

Power supply designed specifically for operating LED light sources.
