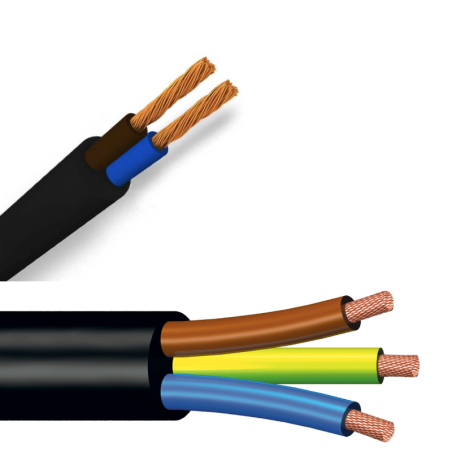

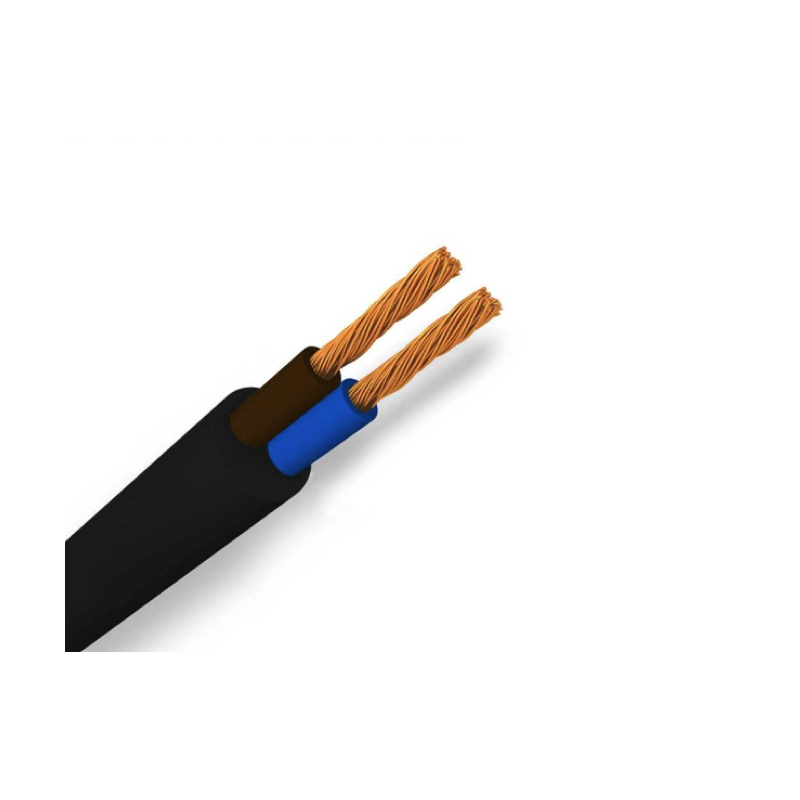

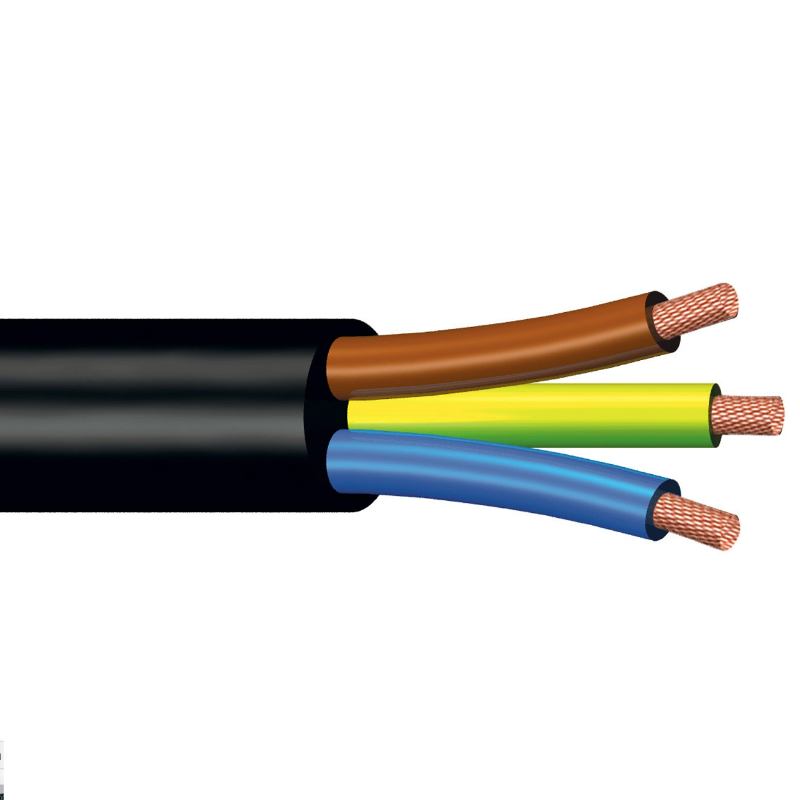

Neoprene CPR H07RN-F Cable

CPR COMPLIANT CABLE: CLASS Eca

Cables for general applications in construction work subject to fire resistance requirements. Provided for by the EN 50575:2014 + A1 standard

H05RN-F:  300/500 V

H07RN-F:  450-750 V

RESISTANCE TO OZONE, UV RAYS AND HUMIDITY

RESISTANCE TO OZONE: In accordance with EN 50396 art. 8.1.3 method B. RESISTANCE TO UV RAYS: tests conducted in accordance with the UNI EN ISO 4892-2013 standard guarantee the maintenance of the colour (for cables with black sheath) and mechanical characteristics.

CONSTRUCTION

Flexible conductor of annealed copper, class 5 according to the current CEI EN 60228 standard

AVERAGE INSULATION THICKNESS (MM)

Insulating mixture based on ethylene propylene rubber of EI4 quality. Electrical insulation of cables for fixed installations and mobile connections in wet environments

SHEATH

Reticulated elastomeric compound based on polychloroprene or other equivalent synthetic elastomer of EM2 quality, black in colour. Protective sheath of electrical cables for fixed installations or for mobile connections, for mechanical service even heavy

DISTINCTIVE COLOURS

Identification of the cores according to the current CEI-UNEL 00722 standard.

MARKING inkjet

PECSO MN IEMMEQU <HAR> H05RN-F (SECTION) CE (YEAR) MADE IN ITALY SAFEP TOUCH Eca

FEATURES

Resistant to oil and chemical and atmospheric agents. For stresses in static operation it is recommended not to exceed 1.5 Kg/mm2. Fire behaviour: flame retardant

Maximum operating temperature in fixed and protected installation: 90°C.
