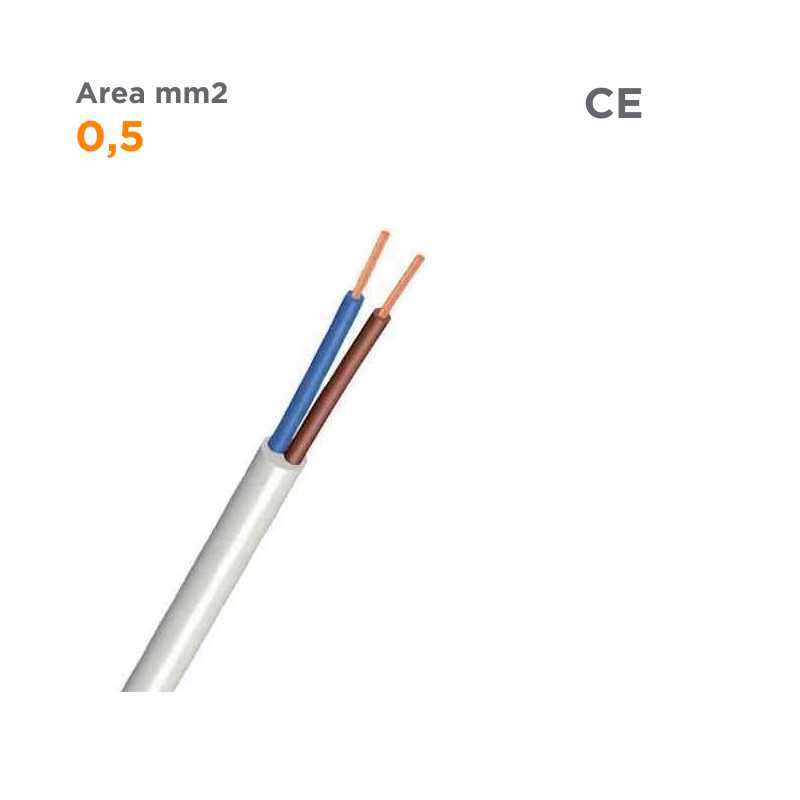

Cable H03VV-F, PVC

Information

DESCRIPTION

Multi-core flexible power cable, PVC insulated under a medium PVC sheath, circular in shape

CONDUCTOR

Flexible annealed red copper strand, ETP1, cross-section 0.5 mm2

CONDUCTOR INSULATION

TI2 grade PVC blend, brown-blue color, diameter 1.90 mm

OUTER SHEATH

TM2 grade PVC blend, white color, diameter 5 mm

FUNCTIONAL CHARACTERISTICS

Maximum operating temperature: 60°C

Minimum operating temperature: -10°C (in the absence of mechanical stress)

Maximum short circuit temperature: 150°C

Maximum current 6A, Electrical resistance 40.1 Ohm/km, Max. operating voltage 300/300V

CONDITIONS OF USE

For dynamic installation. Use in domestic and office environments, for ordinary applications and appliances, including wet areas (e.g., vacuum cleaners, washing machines, dryers, and refrigerators).

Outdoor use is permitted for short-term temporary use.

If used inside equipment or similar where the absence of skin contact can be guaranteed, they are suitable for a maximum conductor operating temperature of 70°C.

STANDARDS

Standard: EN 50525

IMQ

Low Voltage Directive: 2014/35/EU

RoHS Directive: 2011/65/EU

CE
