3M Scotchlok Connector
  • 3M Scotchlok Connector
  • connettori scotchlok 3m

3M Scotchlok Connector

€1.36
Tax included

3M - Corning  Scotchlok  Connectors and crimps


3M Corning
100 pieces

Scotchlok
Quantity request:
Shipped within 1-2 days.

100% secure payments

Description

Product description

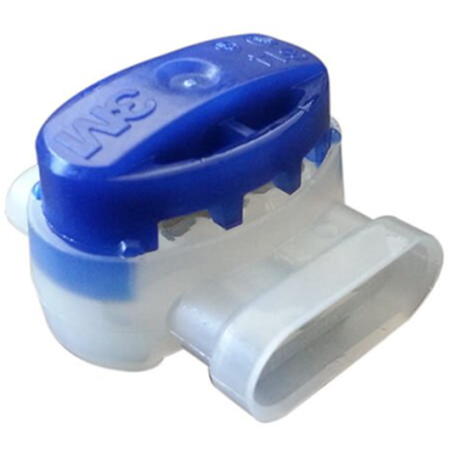

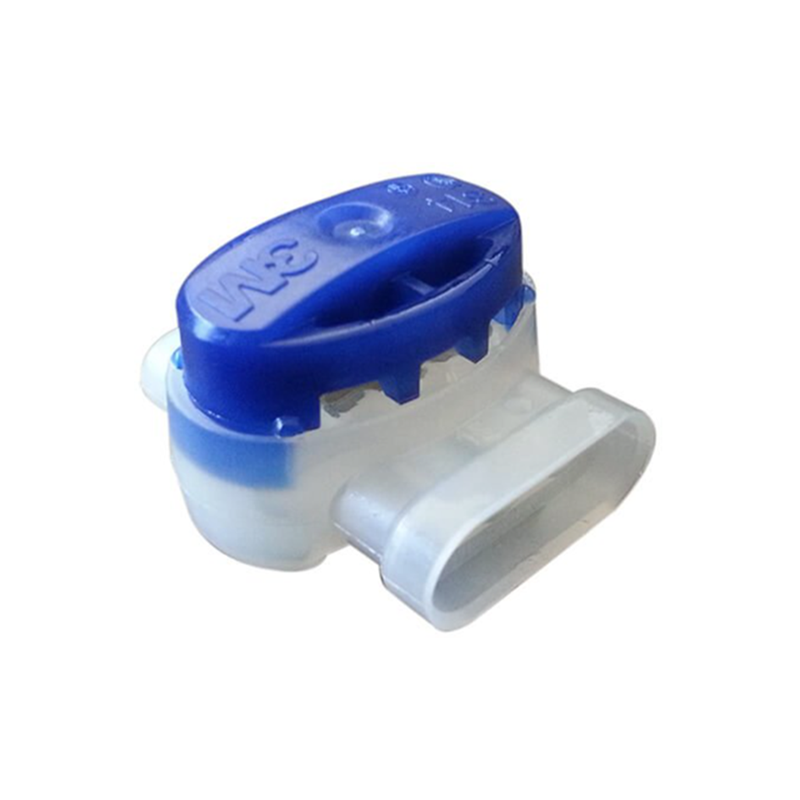

3MTM Scotchlok® 314 Electrical Pigtail Connector electrically connects two

or three wire ends, insulates the connection and provides an additional moisture-resistant1 sealing in junction

or distribution boxes and other protected connections with a higher needed sealing level for electrical connections (up to IPx8).

Attachments

Product Details

314

Data sheet

Full Packaging
50 connectors (price !connectror)
IP
X8
Compatible with
Cavi 0.5 -1.5 mm2 (22-14 AWG)
Certified
UL Listed, CSA certified, EN 60998-2-3 up to 600V
Max Ampere
0.5 mm2 6A ; 1.5 mm2 17.5 A
Max Voltage
600 V
