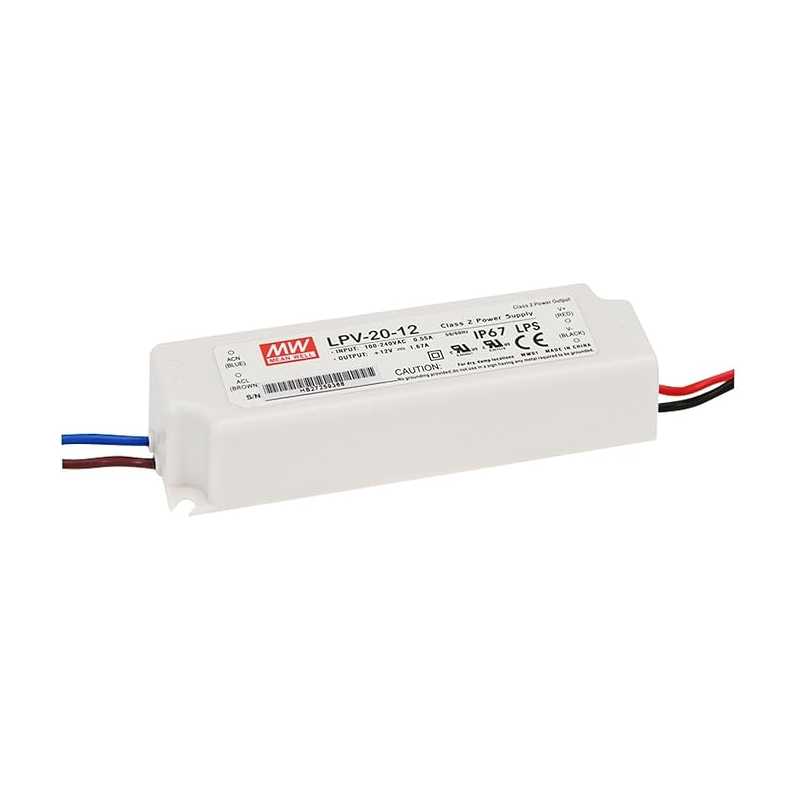

LPV - Driver Mean Well 12V

FEATURES

• Constant voltage design
• Universal AC input / Full range
• Fully encapsulated with IP67 level
• Withstand 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Over voltage
• Fully isolated plastic case
• Cooling by free air convection
• 100% full load burn-in test
• Low cost, high reliability
• This product is not intended for led lighting luminaries applications in eu. Please consider other product in the catalogue for EU. EMC certified according to EN55032 for multimedia and information technology equipment. The installation may not pass the EMC test according to EN55015 for lighting systems.
• 2 Years warranty

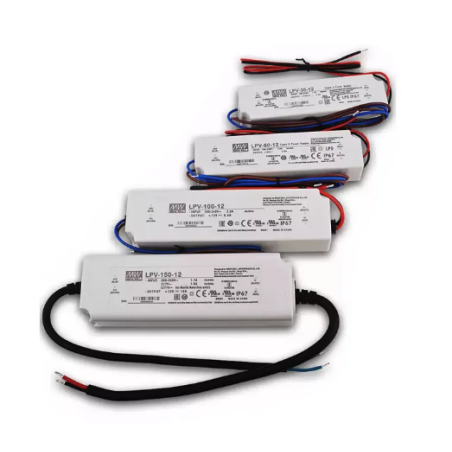

LPV Mean Well

Mean Well LPV-20       20W            118 × 35 × 26 mm              0,22 kg
Mean Well LPV-35       35W            148 × 40 × 30 mm              0,34 kg
Mean Well LPV-60       60W            162.5 × 42.5 × 32 mm        0,40 kg
Mean Well LPV-100     100W          190 × 52 × 37 mm              0,63 kg
Mean Well LPV-150     150W          191 × 63 × 37.5 mm           0,74 kg
